S267Z

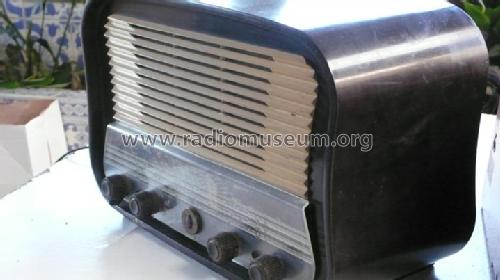

S267Z; Siera; Belgien (ID = 1582677) Radio S267Z; Siera; Belgien (ID = 1582679) Radio

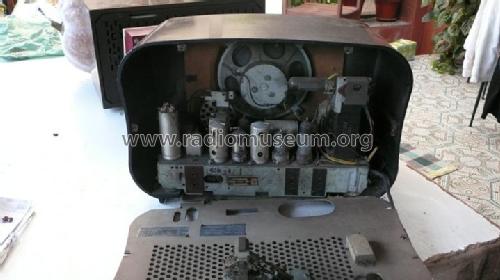

S267Z; Siera; Belgien (ID = 1582680) Radio S267Z; Siera; Belgien (ID = 1582681) Radio
Use red slider bar for more.
S267Z; Siera; Belgien (ID = 1582677) Radio
Siera; Belgien: S267Z [Radio] ID = 1582677 845x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model S267Z, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 3.5 W (3.8 W max.)
from Radiomuseum.org Model: S267Z - Siera; Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 260 x 180 mm / 16.5 x 10.2 x 7.1 inch
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 1'500.00 PTE

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
