S 271 A/50

S 271 A/50; Siera; Belgien (ID = 1448598) Radio

S 271 A/50; Siera; Belgien (ID = 1448600) Radio

S 271 A/50; Siera; Belgien (ID = 1448601) Radio

S 271 A/50; Siera; Belgien (ID = 1448603) Radio

S 271 A/50; Siera; Belgien (ID = 1448605) Radio

S 271 A/50; Siera; Belgien (ID = 1448607) Radio

S 271 A/50; Siera; Belgien (ID = 1448608) Radio

S 271 A/50; Siera; Belgien (ID = 1448610) Radio

S 271 A/50; Siera; Belgien (ID = 1448611) Radio

S 271 A/50; Siera; Belgien (ID = 1448612) Radio
S 271 A/50; Siera; Belgien (ID = 466004) Radio S 271 A/50; Siera; Belgien (ID = 875698) Radio
S 271 A/50; Siera; Belgien (ID = 875699) Radio S 271 A/50; Siera; Belgien (ID = 466002) Radio
S 271 A/50; Siera; Belgien (ID = 466005) Radio S 271 A/50; Siera; Belgien (ID = 461862) Radio
Use red slider bar for more.

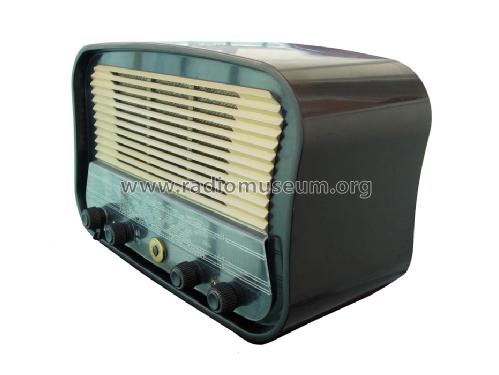

S 271 A/50; Siera; Belgien (ID = 466004) Radio
Siera; Belgien: S 271 A/50 [Radio] ID = 466004 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model S 271 A/50, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: S 271 A/50 - Siera; Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 260 x 180 mm / 15.6 x 10.2 x 7.1 inch
Net weight (2.2 lb = 1 kg) 4.3 kg / 9 lb 7.5 oz (9.471 lb)
Source of data - - Data from my own collection

Model page created by Bekir Ercaliskan. See "Data change" for further contributors.
