SA 2024 A

Siera; Belgien

  • Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 133410

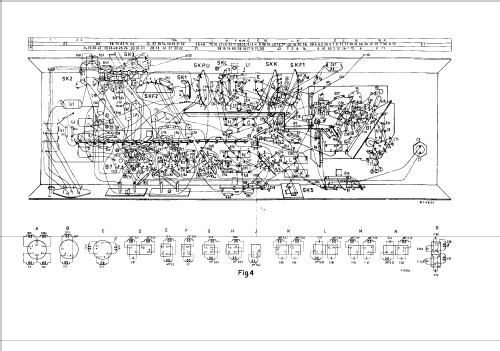

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: SA 2024 A - Siera; Belgien
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 530 x 347 x 215 mm / 20.9 x 13.7 x 8.5 inch
  • Notes
  • Gleiches Chassis wie Philips BX433A oder Siera SA2025A (ohne EM80).
  • Source of data
  • - - Data from my own collection
