• Year
  • 1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 102127

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 626AGF - Sobell Ind., Slough
  • Notes
  • Radiogram fitted with BSR "Monarch" three speed record changer unit.
  • Price in first year of sale
  • 60.00 GBP
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)

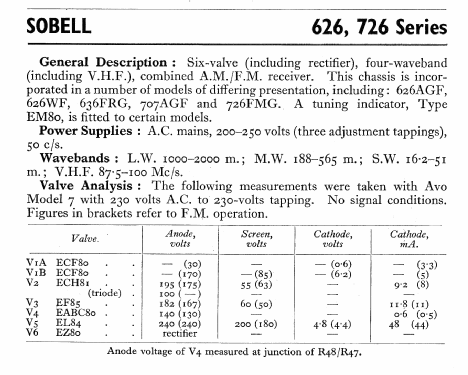

  • Trader Sheet 1246.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
