AK56

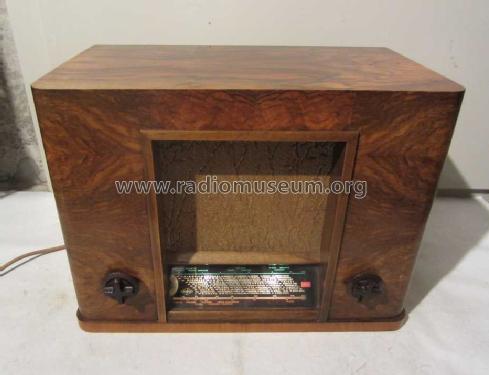

AK56; Sondyna AG; Zürich- (ID = 20351) Radio
AK56; Sondyna AG; Zürich- (ID = 1572364) Radio AK56; Sondyna AG; Zürich- (ID = 1572365) Radio
AK56; Sondyna AG; Zürich- (ID = 1572366) Radio AK56; Sondyna AG; Zürich- (ID = 1572367) Radio
AK56; Sondyna AG; Zürich- (ID = 1572368) Radio AK56; Sondyna AG; Zürich- (ID = 1572369) Radio
AK56; Sondyna AG; Zürich- (ID = 1572370) Radio AK56; Sondyna AG; Zürich- (ID = 1572371) Radio
AK56; Sondyna AG; Zürich- (ID = 1572375) Radio
Use red slider bar for more.
AK56; Sondyna AG; Zürich- (ID = 1572364) Radio
Sondyna AG; Zürich-: AK56 [Radio] ID = 1572364 933x806
Select picture or schematic to display from thumbnails on the right and click for download.
For model AK56, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1936 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL1 AZ1
Main principle Superheterodyne (common)
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: AK56 - Sondyna AG; Zürich-Effretikon
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
