E5632

E5632; Sondyna AG; Zürich- (ID = 1207323) Radio E5632; Sondyna AG; Zürich- (ID = 1207326) Radio
E5632; Sondyna AG; Zürich- (ID = 1207327) Radio
Use red slider bar for more.

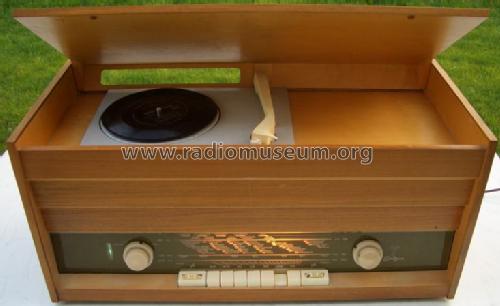

E5632; Sondyna AG; Zürich- (ID = 1207323) Radio
Sondyna AG; Zürich-: E5632 [Radio] ID = 1207323 733x449
Select picture or schematic to display from thumbnails on the right and click for download.
For model E5632, Sondyna AG; Zürich-Effretikon:
Gesamtansicht

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 ECL86
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer); Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220; 250 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: E5632 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 290 x 280 mm / 24.4 x 11.4 x 11 inch
Notes 2. NF Endstufe (Bestückung ECL86 Optional ?) für Stereo zur Wiedergabe des Plattenspielers.
UKW (FM) ist nicht Stereo.
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)

Model page created by Nicola De Min. See "Data change" for further contributors.
