E6010

E6010; Sondyna AG; Zürich- (ID = 1092618) Radio

E6010; Sondyna AG; Zürich- (ID = 1092621) Radio

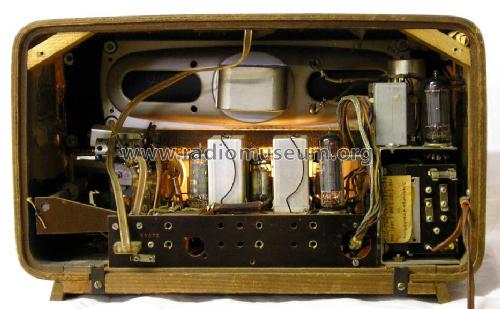

E6010; Sondyna AG; Zürich- (ID = 90000) Radio E6010; Sondyna AG; Zürich- (ID = 90002) Radio

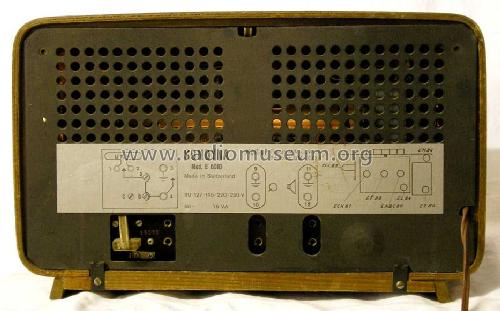

E6010; Sondyna AG; Zürich- (ID = 90001) Radio E6010; Sondyna AG; Zürich- (ID = 373384) Radio
Use red slider bar for more.

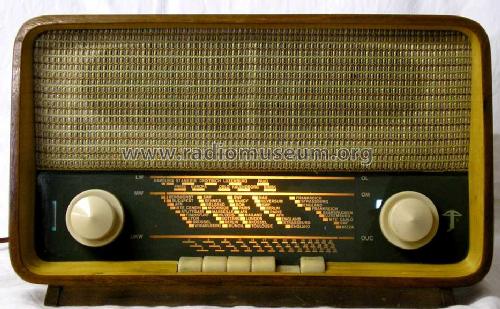

E6010; Sondyna AG; Zürich- (ID = 90000) Radio
Sondyna AG; Zürich-: E6010 [Radio] ID = 90000 933x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model E6010, Sondyna AG; Zürich-Effretikon:
Eigene Sammlung

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 145, 220, 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: E6010 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 393 x 240 x 220 mm / 15.5 x 9.4 x 8.7 inch
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Martin Bösch. See "Data change" for further contributors.



All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
