Musikus E4710E

Musikus E4710E; Sondyna AG; Zürich- (ID = 167180) Radio Musikus E4710E; Sondyna AG; Zürich- (ID = 167181) Radio
Musikus E4710E; Sondyna AG; Zürich- (ID = 167182) Radio
Use red slider bar for more.

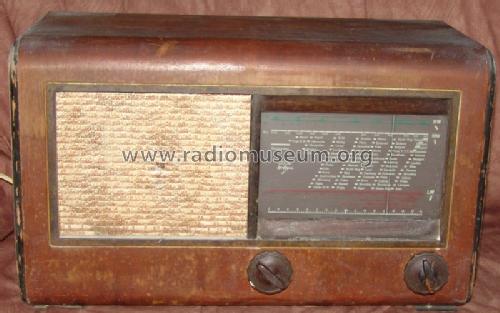

Musikus E4710E; Sondyna AG; Zürich- (ID = 167180) Radio
Sondyna AG; Zürich-: Musikus E4710E [Radio] ID = 167180 800x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikus E4710E, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Musikus E4710E - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 483 x 287 x 210 mm / 19 x 11.3 x 8.3 inch
Net weight (2.2 lb = 1 kg) 8.6 kg / 18 lb 15.1 oz (18.943 lb)
Source of data -- Collector info (Sammler)

Model page created by Stéphane Geslain. See "Data change" for further contributors.



All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
