Troubadour E 4612 E

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 69295) Radio

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 69296) Radio

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 69297) Radio

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 1325876) Radio

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 1325877) Radio

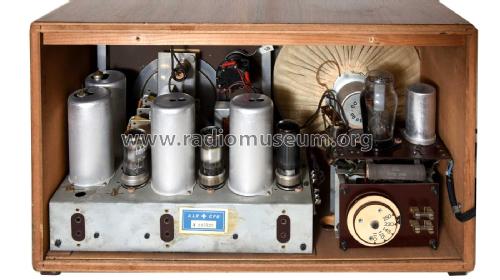

Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518684) Radio Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518687) Radio
Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518669) Radio Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518673) Radio
Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518686) Radio Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518683) Radio
Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518672) Radio Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518674) Radio
Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518670) Radio Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2454) Radio
Use red slider bar for more.
Troubadour E 4612 E; Sondyna AG; Zürich- (ID = 2518684) Radio
Sondyna AG; Zürich-: Troubadour E 4612 E [Radio] ID = 2518684 1400x1108
Select picture or schematic to display from thumbnails on the right and click for download.
For model Troubadour E 4612 E, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1946–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1 or 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Troubadour E 4612 E - Sondyna AG; Zürich-Effretikon
Material Wooden case
Notes KW-Lupe
Price in first year of sale 495.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Sondyna AG; Zürich-Effretikon
Here you find 176 models, 107 with images and 112 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
