Troubadour E4614

Troubadour E4614; Sondyna AG; Zürich- (ID = 69301) Radio

Troubadour E4614; Sondyna AG; Zürich- (ID = 69099) Radio

Troubadour E4614; Sondyna AG; Zürich- (ID = 69302) Radio
Use red slider bar for more.
Troubadour E4614; Sondyna AG; Zürich- (ID = 69301) Radio

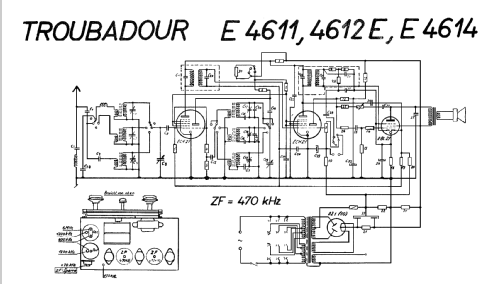

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1946–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1 or 80
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Troubadour E4614 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Notes KW-Lupe
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
