• Country
• Denmark

• Manufacturer / Brand
• SP Radio (S.P.), Sailor Marineradio; Aalborg

• Year
• 1971 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 283182

• • Brand: Sailor

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• BC109 BD106

• Main principle
• Transmitter

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / DC 12; 24; 32 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Sailor AM Transmitter 1W 96D - SP Radio S.P., Sailor

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 95 x 125 x 60 mm / 3.7 x 4.9 x 2.4 inch

• Notes

• X-tal controlled transmitter chassis and microphone, 3302 kHz or 2182 kHz.

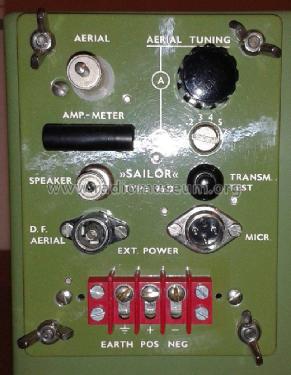

  For use in combination with receivers Sailor 46T (type 96D/46T), 46TD (type 96D/46TD) or 66T (type 96D/66T).

• Mentioned in

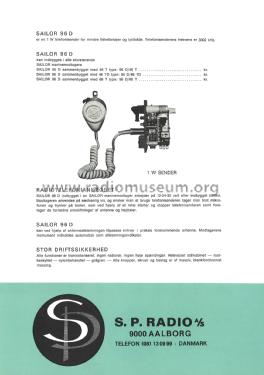

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bent Mogensen. See "Data change" for further contributors.
