Sailor 46T

Sailor 46T; S.P. Radio A/S; (ID = 652495) Commercial Re
Sailor 46T; S.P. Radio A/S; (ID = 72508) Commercial Re Sailor 46T; S.P. Radio A/S; (ID = 72509) Commercial Re
Sailor 46T; S.P. Radio A/S; (ID = 105074) Commercial Re Sailor 46T; S.P. Radio A/S; (ID = 105075) Commercial Re
Sailor 46T; S.P. Radio A/S; (ID = 359695) Commercial Re Sailor 46T; S.P. Radio A/S; (ID = 611612) Commercial Re
Sailor 46T; S.P. Radio A/S; (ID = 611613) Commercial Re Sailor 46T; S.P. Radio A/S; (ID = 611614) Commercial Re
Sailor 46T; S.P. Radio A/S; (ID = 611619) Commercial Re Sailor 46T; S.P. Radio A/S; (ID = 1091129) Commercial Re
Use red slider bar for more.
Sailor 46T; S.P. Radio A/S; (ID = 72508) Commercial Re

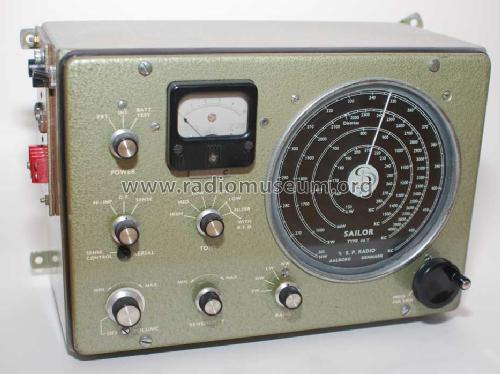

S.P. Radio A/S;: Sailor 46T [Commercial Re] ID = 72508 640x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sailor 46T, S.P. Radio A/S; Aalborg:
The little box is the 'Sailor 46FB' Transformerbox.

Country:  Denmark
Manufacturer / Brand:  S.P. Radio A/S; Aalborg
Brand

Sailor
Year: 1964 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) 9:
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / 6x1.5/12/24/32 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1.8 W (unknown quality)
from Radiomuseum.org Model: Sailor 46T - S.P. Radio A/S; Aalborg
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 320 x 220 x 160 mm / 12.6 x 8.7 x 6.3 inch
Notes

Marine Communications Receiver for LW, MW, SW (1,6 - 4 MHz) and 275 - 425 kHz (NW/DF-Band). Modes AM/CW/SSB with BFO. Waterresistant case for table top or wall installation, inside holder for six 1.5 volts D cells. DF/homing with loop antenna and special prestage unit. Successor of  Sailor 16T.

Optional 1 watt xtal controlled AM transmitter modul for 2182 or 3302 kHz, see Sailor 96D.

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 930.00 DKR
Source of data -- Schematic

Model page created by Iven Müller. See "Data change" for further contributors.
