Radiola 502V
Use red slider bar for more.

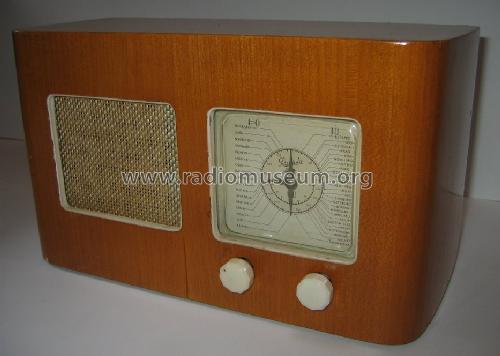

SRA Svenska: Radiola 502V [Radio] ID = 1287603 933x666
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Radiola | ||||
|---|---|---|---|---|---|
| Year: 1949/1950 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

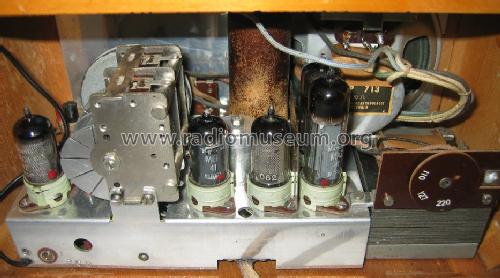

| Valves / Tubes | 5: ECH42 EF41 EBC41 EL41 AZ41 |
| Main principle | Superheterodyne (common); ZF/IF 452 kHz |
|---|---|

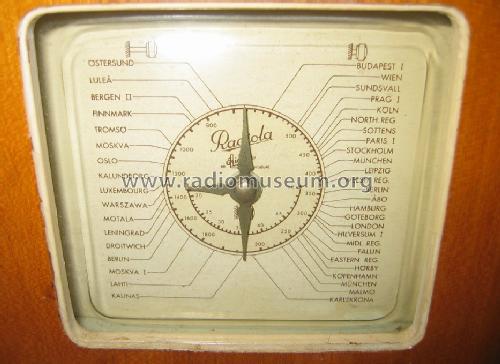

| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch |
| Power out | 3.5 W (unknown quality) |
| from Radiomuseum.org | Model: Radiola 502V - SRA Svenska Radioaktiebolaget; |
| Material | Wooden case |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 315 x 175 x 135 mm / 12.4 x 6.9 x 5.3 inch |
| Notes | Eingebaute Flächenantenne. |
| Net weight (2.2 lb = 1 kg) | 3.6 kg / 7 lb 14.9 oz (7.93 lb) |
| Source of data | -- Collector info (Sammler) |
Model page created by Timo Rantasaari. See "Data change" for further contributors.
