Radiola 1434 V

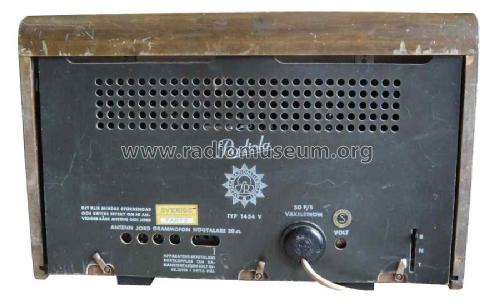

Radiola 1434 V; SRA Svenska (ID = 2117046) Radio Radiola 1434 V; SRA Svenska (ID = 2117047) Radio
Radiola 1434 V; SRA Svenska (ID = 2117049) Radio Radiola 1434 V; SRA Svenska (ID = 2117051) Radio
Radiola 1434 V; SRA Svenska (ID = 2117053) Radio Radiola 1434 V; SRA Svenska (ID = 2117056) Radio
Radiola 1434 V; SRA Svenska (ID = 2117058) Radio
Use red slider bar for more.
Radiola 1434 V; SRA Svenska (ID = 2117046) Radio
SRA Svenska: Radiola 1434 V [Radio] ID = 2117046 900x658
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 1434 V, SRA Svenska Radioaktiebolaget; Stockholm

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6J8EG 6K7MG 6Q7G 6V6EG 6UG5G AZ1
Main principle Superheterodyne (common); ZF/IF 144 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Radiola 1434 V - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 307 x 243 mm / 19.3 x 12.1 x 9.6 inch
Notes

The same circuit diagram as 1433 V.

Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 425.00 SEK
Source of data - - Manufacturers Literature

Model page created by Anders Söderström. See "Data change" for further contributors.
