Radiola 474 LV

Radiola 474 LV; SRA Svenska (ID = 1616401) Radio
Radiola 474 LV; SRA Svenska (ID = 1213370) Radio Radiola 474 LV; SRA Svenska (ID = 1213362) Radio
Radiola 474 LV; SRA Svenska (ID = 1213364) Radio Radiola 474 LV; SRA Svenska (ID = 1213365) Radio
Radiola 474 LV; SRA Svenska (ID = 1213367) Radio Radiola 474 LV; SRA Svenska (ID = 1213368) Radio
Radiola 474 LV; SRA Svenska (ID = 1213376) Radio
Use red slider bar for more.
Radiola 474 LV; SRA Svenska (ID = 1213370) Radio
SRA Svenska: Radiola 474 LV [Radio] ID = 1213370 763x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 474 LV, SRA Svenska Radioaktiebolaget; Stockholm

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage AC/DC-set / 110; 130; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Radiola 474 LV - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 306 x 242 mm / 18.5 x 12 x 9.5 inch
Notes

5 KW Bereiche.
Variable bandwidth.

Net weight (2.2 lb = 1 kg) 8.8 kg / 19 lb 6.1 oz (19.383 lb)

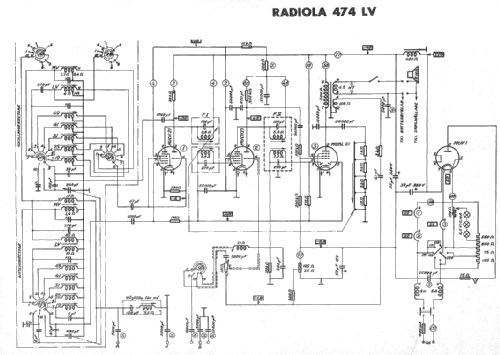

Source of data -- Schematic

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.
