Radiola Femett 2553V

Radiola Femett 2553V; SRA Svenska (ID = 381532) Radio

Radiola Femett 2553V; SRA Svenska (ID = 381534) Radio
Radiola Femett 2553V; SRA Svenska (ID = 460084) Radio Radiola Femett 2553V; SRA Svenska (ID = 460085) Radio
Radiola Femett 2553V; SRA Svenska (ID = 460086) Radio
Use red slider bar for more.
Radiola Femett 2553V; SRA Svenska (ID = 460084) Radio
SRA Svenska: Radiola Femett 2553V [Radio] ID = 460084 600x410

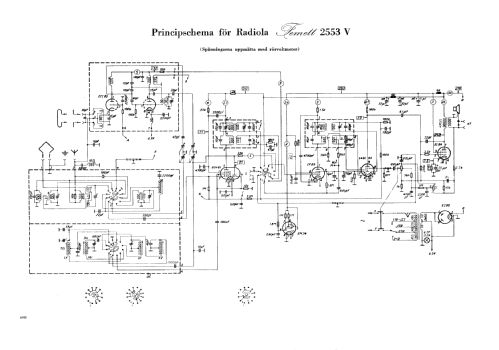

Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Femett 2553V, SRA Svenska Radioaktiebolaget; Stockholm

Country:  Sweden
Manufacturer / Brand:  SRA Svenska Radioaktiebolaget; Stockholm
Brand

Radiola
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM34 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 150; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Radiola Femett 2553V - SRA Svenska Radioaktiebolaget;
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 380 x 226 x 117 mm / 15 x 8.9 x 4.6 inch
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 335.00 SEK
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Olausson. See "Data change" for further contributors.



All listed radios etc. from SRA Svenska Radioaktiebolaget; Stockholm
Here you find 265 models, 144 with images and 155 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
