• Country
• Italy

• Manufacturer / Brand
• SRE - Scuola Radio Elettra, Torino

• Year
• 1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 106020

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECH42 AZ41

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

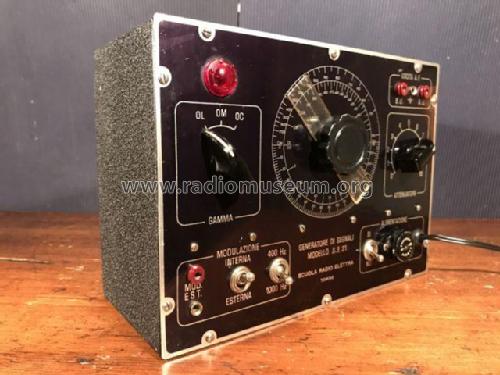

• Model: Oscillatore modulato S.E.21 - SRE - Scuola Radio Elettra,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 250 x 180 x 110 mm / 9.8 x 7.1 x 4.3 inch

• Notes
• scatola metallica verniciata, pannello di alluminio anodizzato, gamme di frequenza: OL 380-530 kHz, OM 500-1800 kHz, OC 5,5-15 MHz. Modulazione interna 400 o 1000 Hz ed esterna. Attenuatore partitore AU-BU ed attenuatore a regolazione lineare.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
