Imperial 4BGW

Imperial 4BGW; Stassfurter Licht- (ID = 44509) Radio

Imperial 4BGW; Stassfurter Licht- (ID = 10907) Radio
Imperial 4BGW; Stassfurter Licht- (ID = 484245) Radio Imperial 4BGW; Stassfurter Licht- (ID = 1386634) Radio
Imperial 4BGW; Stassfurter Licht- (ID = 1601502) Radio
Use red slider bar for more.
Imperial 4BGW; Stassfurter Licht- (ID = 484245) Radio

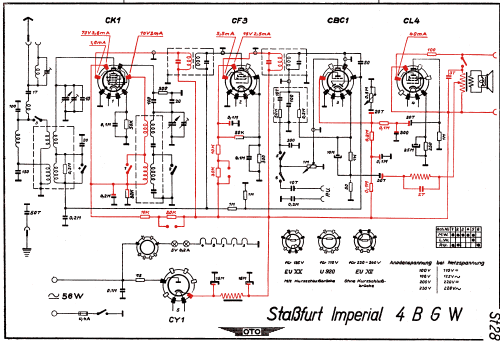

Stassfurter Licht-: Imperial 4BGW [Radio] ID = 484245 418x286
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 4BGW, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 CY1 U920 or EUXII or EUXIII
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial 4BGW - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 328 x 280 mm / 22.4 x 12.9 x 11 inch
Notes Ch= 40GW.
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 238.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
