Imperial GWL35

Imperial GWL35; Stassfurter Licht- (ID = 6870) Radio

Imperial GWL35; Stassfurter Licht- (ID = 13153) Radio

Imperial GWL35; Stassfurter Licht- (ID = 13154) Radio
Imperial GWL35; Stassfurter Licht- (ID = 1019) Radio Imperial GWL35; Stassfurter Licht- (ID = 23187) Radio

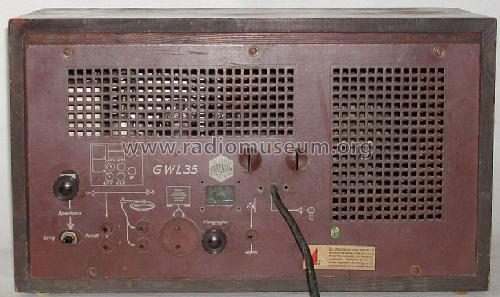

Imperial GWL35; Stassfurter Licht- (ID = 23189) Radio Imperial GWL35; Stassfurter Licht- (ID = 23190) Radio
Imperial GWL35; Stassfurter Licht- (ID = 623050) Radio
Use red slider bar for more.
Imperial GWL35; Stassfurter Licht- (ID = 1019) Radio
Stassfurter Licht-: Imperial GWL35 [Radio] ID = 1019 700x435
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial GWL35, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CF3 CF7 CL2 CY1 EUVI or EUX
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Imperial GWL35 - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 300 x 290 mm / 19.7 x 11.8 x 11.4 inch
Notes Uhrenskala.
Price in first year of sale 262.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
