Imperial J4B/W

Imperial J4B/W; Stassfurter Licht- (ID = 655300) Radio

Imperial J4B/W; Stassfurter Licht- (ID = 655302) Radio

Imperial J4B/W; Stassfurter Licht- (ID = 655303) Radio

Imperial J4B/W; Stassfurter Licht- (ID = 655306) Radio

Imperial J4B/W; Stassfurter Licht- (ID = 655307) Radio
Imperial J4B/W; Stassfurter Licht- (ID = 324573) Radio Imperial J4B/W; Stassfurter Licht- (ID = 324571) Radio

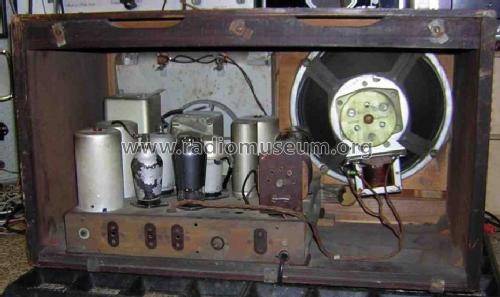

Imperial J4B/W; Stassfurter Licht- (ID = 324572) Radio Imperial J4B/W; Stassfurter Licht- (ID = 324574) Radio
Imperial J4B/W; Stassfurter Licht- (ID = 1601498) Radio
Use red slider bar for more.
Imperial J4B/W; Stassfurter Licht- (ID = 324573) Radio
Stassfurter Licht-: Imperial J4B/W [Radio] ID = 324573 933x575
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial J4B/W, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 478 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial J4B/W - Stassfurter Licht- und
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 330 x 280 mm / 22.4 x 13 x 11 inch
Notes Es gibt beide Bezeichnungen: "J4B/W" von Imperial (Gerät) und "Imperial 4B/W" von Staßfurt (kataloge und Schaltungssammlungen). Deshalb führen wir hier beides auf.
Net weight (2.2 lb = 1 kg) 12.5 kg / 27 lb 8.5 oz (27.533 lb)
Price in first year of sale 218.00 RM
Source of data - - Data from my own collection
Circuit diagram reference Lange-Nowisch

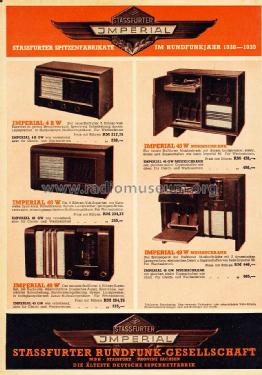

Mentioned in Katalog Radio-Web 1938/39
Literature/Schematics (1) Schenk-Regelien 21

Model page created by Franz Born †. See "Data change" for further contributors.



All listed radios etc. from Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Here you find 222 models, 167 with images and 139 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
