Stassfurter Licht-: LW27 [Radio] ID = 2406151 1400x796

Select picture or schematic to display from thumbnails on the right and click for download.

For model LW27, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter):
Inventar Nr.531

Country:

Germany

Manufacturer / Brand:

Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Year: 1936/1937

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

3: AF7 AL4 AZ1

Main principle	TRF with regeneration; 1 AF stage(s)
Tuned circuits	1 AM circuit(s)
Wave bands	Broadcast (MW) and Long Wave.
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org	Model: LW27 - Stassfurter Licht- und
Material	Wooden case
Shape	Tablemodel, low profile (big size).
Dimensions (WHD)	495 x 250 x 220 mm / 19.5 x 9.8 x 8.7 inch
Notes	«Uhrenskala».
Net weight (2.2 lb = 1 kg)	10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale	159.00 RM
Source of data	HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

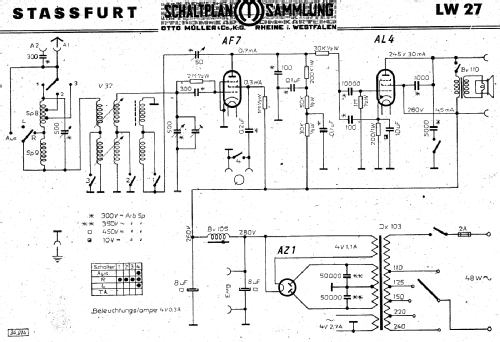

Circuit diagram reference	Lange+Schenk+FS-Röhrenbestückung
Mentioned in	Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) (2)
Picture reference	Das Modell ist im «Radiokatalog» (Erb) abgebildet.
