Imperial 40W M-Schrank

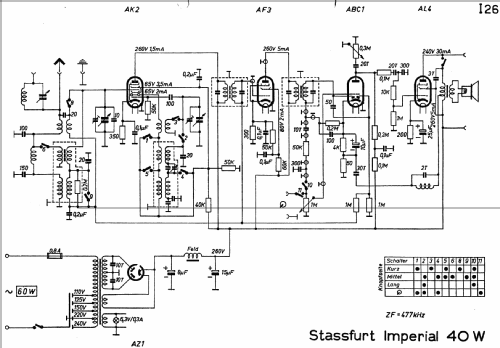

Imperial 40W; Stassfurter Licht- (ID = 221610) Radio

Imperial 40W; Stassfurter Licht- (ID = 6886) Radio

Imperial 40W; Stassfurter Licht- (ID = 10908) Radio
Imperial 40W; Stassfurter Licht- (ID = 484194) Radio Imperial 40W; Stassfurter Licht- (ID = 1386639) Radio
Imperial 40W; Stassfurter Licht- (ID = 1601509) Radio
Use red slider bar for more.

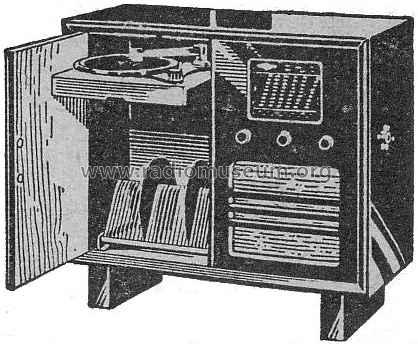

Imperial 40W; Stassfurter Licht- (ID = 484194) Radio
Stassfurter Licht-: Imperial 40W [Radio] ID = 484194 418x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial 40W M-Schrank, Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)

Country:  Germany
Manufacturer / Brand:  Stassfurter Licht- und Kraftwerke AG; Staßfurt (Staßfurter)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 477 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperial 40W [M-Schrank] - Stassfurter Licht- und
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 890 x 806 x 410 mm / 35 x 31.7 x 16.1 inch
Net weight (2.2 lb = 1 kg) 24.3 kg / 53 lb 8.4 oz (53.524 lb)
Price in first year of sale 478.00 RM
Source of data Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb
Mentioned in Fortschritte der Funktechnik und ihrer Grenzgebiete (8 Bände) (5)
