Berolina K II FK

Berolina K II FK; Stern-Radio Berlin, (ID = 1766101) Radio
Berolina K II FK; Stern-Radio Berlin, (ID = 376808) Radio
Use red slider bar for more.
Berolina K II FK; Stern-Radio Berlin, (ID = 376808) Radio
Stern-Radio Berlin,: Berolina K II FK [Radio] ID = 376808 868x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berolina K II FK, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG:

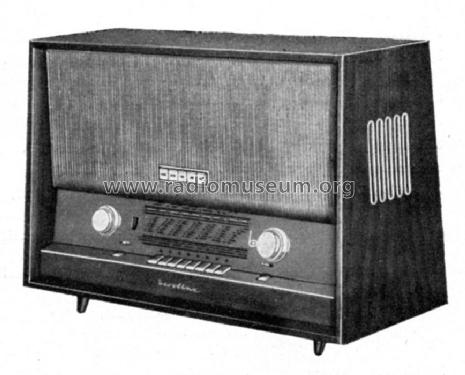

Prospektbild. Die FK-Modelle besitzen drehbare Ferritantenne (hinterer linker Knopf) und 5-teiliges Klangregister.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1957–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 3.5 W (unknown quality)
from Radiomuseum.org Model: Berolina K II FK - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 700 x 471 x 294 mm / 27.6 x 18.5 x 11.6 inch
Notes Modernes kantiges Gehäuse (K= von Institut für Bildende Kunst Berlin entworfen, II= 2. Version). Drehbare Ferritantenne, 5-Tasten-Klangregister, getrennte H/T-Regler, Schwungrad-Duplexantrieb.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
