Stern Elite N de Luxe R150-40

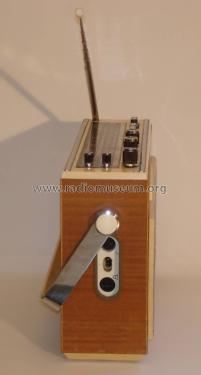

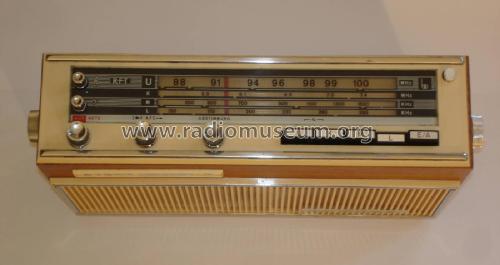

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1208516) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1208518) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1208519) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1208520) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 818782) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1210454) Radio

Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1210420) Radio
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215861) Radio Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215862) Radio
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215863) Radio Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215865) Radio
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215867) Radio Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215872) Radio
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 299111) Radio Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 299112) Radio
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 1203959) Radio
Use red slider bar for more.
Stern Elite N de Luxe R150-40; Stern-Radio Berlin, (ID = 215861) Radio

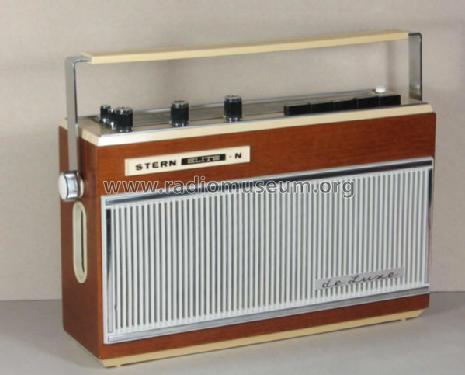

Stern-Radio Berlin,: Stern Elite N de Luxe R150-40 [Radio] ID = 215861 600x483
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Elite N de Luxe R150-40, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: GF132 GF181 GF130 GF130 GF139 SC207 SC206 МП20 GC510 GC520 GA113 GA113 GA100 GA100
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Elite N de Luxe R150-40 - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 210 x 90 mm / 12.6 x 8.3 x 3.5 inch
Notes Gehäusevariante des Stern Elite N mit Edelholz-Furnier (siehe auch dort). N= eingebautes Netzteil. Als Endstufe ist eine eisenlose Schaltung mit komplementären Transistoren eingesetzt. Das Gerät hat Anschlußbuchsen für TA/ TB, einen Außenlautsprecher, eine Autoantenne und für den Netzanschluss.
UKW: 87.5 - 100 MHz,
KW: 5.82 - 7.55 MHz,
MW: 529 - 1.605 kHz,
LW: 150 - 285 kHz.
Mit Tuner 4402.03.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 655.00 DM
Source of data - - Data from my own collection
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990
Literature/Schematics (1) Service-DVD Funkverlag B. Hein (radio fernsehen elektronik 1972, H. 20 S. 667; 1973, H.2 S.55)
Literature/Schematics (2) Funkgeschichte der GFGF (Heft 202 April/Mai 2012, S.64 ff Umfangreiche Gerätevorstellung, AFC Thematik)
Literature/Schematics (3) - - Manufacturers Literature (Stern-Radio Berlin; III. Einlage für die Information Nr. 98/1967)
