Werder 1 ; Stern-Radio Berlin, (ID = 38478) Radio
Stern-Radio Berlin,: Werder 1 [Radio] ID = 38478 315x208
Select picture or schematic to display from thumbnails on the right and click for download.
For model Werder 1, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG:
Werder

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Werder 1 - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 360 x 230 mm / 18.9 x 14.2 x 9.1 inch
Notes

Der Mittelsuper Werder 1 hat die Wellenbereiche UKW, KW von 5,8 bis 10 MHz und MW.. Das Schwestergerät Müggel 1 hat ein anderes Gehäuse.
Der Aufdruck auf der Rückwand weist Müggel 1 / Werder 1 aus.
Die eindeutige Zuordnung ergibt sich aus dem Namensschild an der Gehäusefront.

Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)
Price in first year of sale 415.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkverlag Hein, Service-DVD

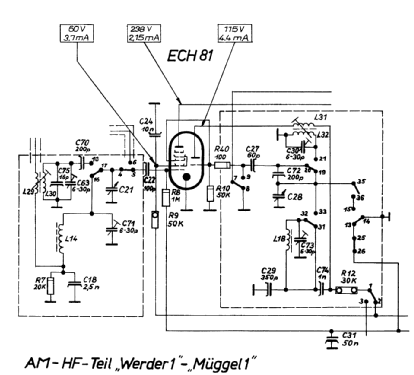

Literature/Schematics (1) -- Original-techn. papers.
Documents regarding this model
  Serviceanleitung 3489 KB
