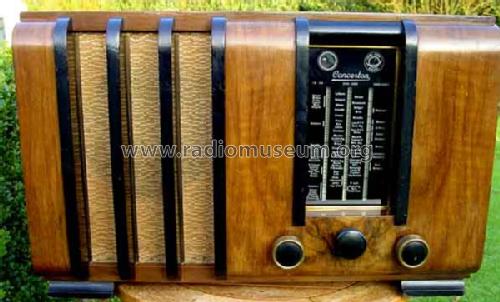

Concerton 68U
Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Stern & Stern (Concerton / Conserton), S&S; Stockholm
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123150
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 130; 140; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Power out
- 3.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Concerton 68U - Stern & Stern Concerton /
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 585 x 370 x 330 mm / 23 x 14.6 x 13 inch
- Net weight (2.2 lb = 1 kg)
- 15.8 kg / 34 lb 12.8 oz (34.802 lb)
- Author
- Model page created by Jozef Brughmans †. See "Data change" for further contributors.
