• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70286

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• ECC85 EF89 ECH81 EF89 EM84 EBF89 EAA91 ECC83 ECC83 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 440/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stradivari 3 Stereo 1142.013-00001 Sp [mit EM84] - Stern-Radio Rochlitz, VEB, RFT

• Dimensions (WHD)
• 695 x 450 x 310 mm / 27.4 x 17.7 x 12.2 inch

• Notes
• Siehe auch "Stradivari 3 Stereosteuergerät"
  Drei Kurzwellenbereiche. Stereo-Zusatzbox 300x800x320mm mit gleicher LS-Bestückung wie Gerät (6VA oval + 1,5VA HT). Auch mit ZF=468kHz ausgeliefert.

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Price in first year of sale
• 875.00 DM

• External source of data
• René Wukasch

• Source of data
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

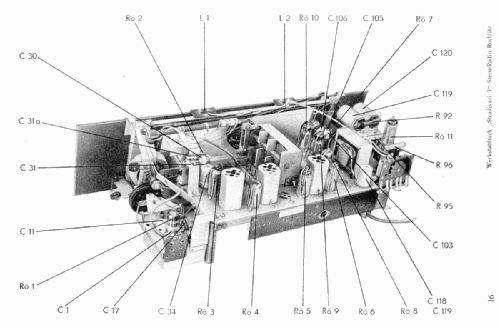

• -- Collector info (Sammler) (Funkverlag Hein, Service-CD)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
