Saalburg 5170A

Saalburg 5170A; Stern-Radio (ID = 46803) Radio

Saalburg 5170A; Stern-Radio (ID = 649406) Radio

Saalburg 5170A; Stern-Radio (ID = 649407) Radio

Saalburg 5170A; Stern-Radio (ID = 649409) Radio

Saalburg 5170A; Stern-Radio (ID = 649412) Radio

Saalburg 5170A; Stern-Radio (ID = 649535) Radio

Saalburg 5170A; Stern-Radio (ID = 649405) Radio

Saalburg 5170A; Stern-Radio (ID = 649523) Radio

Saalburg 5170A; Stern-Radio (ID = 649527) Radio

Saalburg 5170A; Stern-Radio (ID = 649403) Radio
Saalburg 5170A; Stern-Radio (ID = 2392973) Radio Saalburg 5170A; Stern-Radio (ID = 2392975) Radio
Saalburg 5170A; Stern-Radio (ID = 2392977) Radio Saalburg 5170A; Stern-Radio (ID = 40376) Radio
Saalburg 5170A; Stern-Radio (ID = 40377) Radio Saalburg 5170A; Stern-Radio (ID = 110589) Radio
Saalburg 5170A; Stern-Radio (ID = 588457) Radio Saalburg 5170A; Stern-Radio (ID = 110588) Radio
Saalburg 5170A; Stern-Radio (ID = 110607) Radio Saalburg 5170A; Stern-Radio (ID = 231896) Radio
Use red slider bar for more.
Saalburg 5170A; Stern-Radio (ID = 2392973) Radio
Stern-Radio: Saalburg 5170A [Radio] ID = 2392973 1400x732
Select picture or schematic to display from thumbnails on the right and click for download.
For model Saalburg 5170A, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:

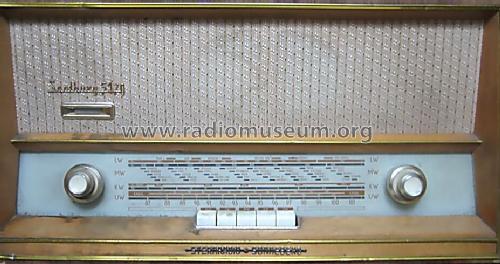

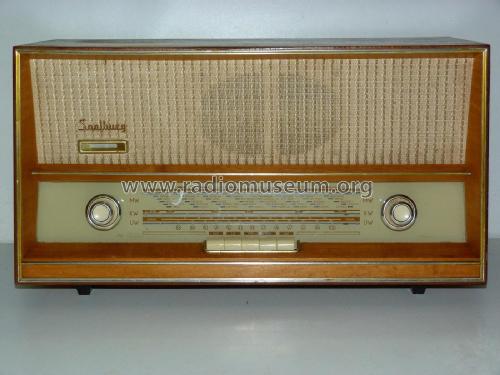

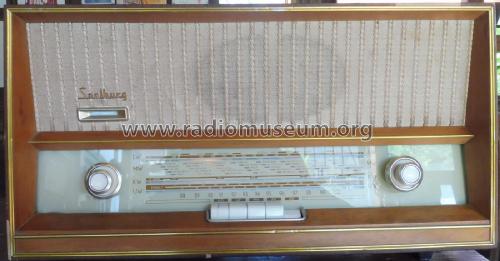

Saalburg 5170A Front

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 EABC80 EM84 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Saalburg 5170A - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 280 x 220 mm / 20.5 x 11 x 8.7 inch
Notes Der Empfänger Saalburg 5170 oder Saalburg 5170A wurde für den Binnenmarkt der DDR hergestellt. Die Fertigung wurde ab 1965 vom VEB Funkmechanik Neustadt / Glewe übernommen. Das Gerät empfängt UKW bis 100 MHz.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 415.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Service-DVD Funkverlag B. Hein
Literature/Schematics (1) Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (2) -- Original-techn. papers.
Documents about this model
  Serviceanleitung 5044 KB


All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 380 models, 301 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio: Saalburg 5170A
Threads: 1 | Posts: 1
Hits: 1448     Replies: 0
stern-sonn: 5170; Saalburg
Egon Strampe
30.Jan.07
  1 Blubbern auf UKW. Fehlerhafter Kondens. C 12 (12pF) im UKW-Tuner.
