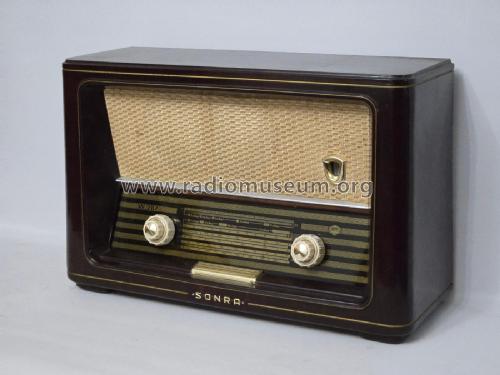

Sonra Super 66/58 W207P EM80

Sonra Super 66/58 W207P; Stern-Radio (ID = 1250372) Radio

Sonra Super 66/58 W207P; Stern-Radio (ID = 1250377) Radio

Sonra Super 66/58 W207P; Stern-Radio (ID = 1250375) Radio

Sonra Super 66/58 W207P; Stern-Radio (ID = 1250374) Radio

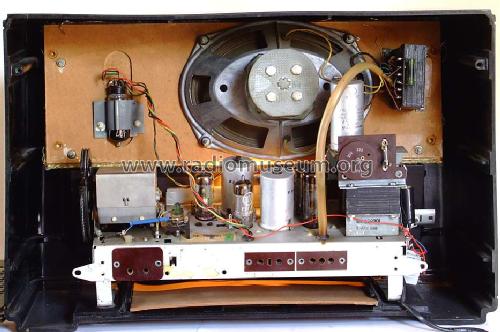

Sonra Super 66/58 W207P; Stern-Radio (ID = 1731601) Radio Sonra Super 66/58 W207P; Stern-Radio (ID = 348625) Radio
Sonra Super 66/58 W207P; Stern-Radio (ID = 348626) Radio Sonra Super 66/58 W207P; Stern-Radio (ID = 348627) Radio
Sonra Super 66/58 W207P; Stern-Radio (ID = 348624) Radio Sonra Super 66/58 W207P; Stern-Radio (ID = 1376288) Radio
Use red slider bar for more.
Sonra Super 66/58 W207P; Stern-Radio (ID = 1731601) Radio
Stern-Radio: Sonra Super 66/58 W207P [Radio] ID = 1731601 933x728
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonra Super 66/58 W207P EM80, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1958 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EBF80 EL84 EM80
Semiconductors (the count is only for transistors) Selen
Main principle Super-Heterodyne (Super in general); ZF/IF 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 150; 180; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Sonra Super 66/58 W207P [EM80] - Stern-Radio Sonneberg, VEB,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 490 x 320 x 184 mm / 19.3 x 12.6 x 7.2 inch
Notes

Exportgerät für den Orient (K1 40...94 m, K2 13...35 m). Auch im Holzgehäuse als Super 66/58 W207H. Auch SONRA als Markenname verwendet.
Im Inland als Ilmenau 650 verkauft.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Mentioned in Radio und Fernsehen (DDR) (1958, H. 13)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
