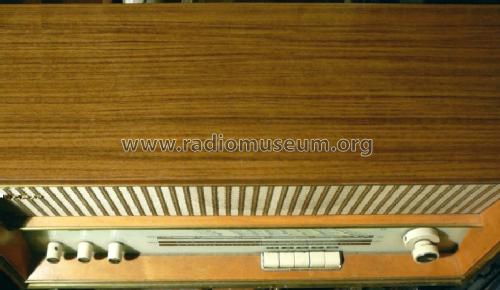

Weimar 5180; Stern-Radio (ID = 1471530) Radio Weimar 5180; Stern-Radio (ID = 1471534) Radio
Weimar 5180; Stern-Radio (ID = 1987041) Radio Weimar 5180; Stern-Radio (ID = 1987042) Radio
Weimar 5180; Stern-Radio (ID = 1987043) Radio Weimar 5180; Stern-Radio (ID = 1987044) Radio
Weimar 5180; Stern-Radio (ID = 1987045) Radio Weimar 5180; Stern-Radio (ID = 1987047) Radio
Use red slider bar for more.
Weimar 5180; Stern-Radio (ID = 1987038) Radio
Stern-Radio: Weimar 5180 [Radio] ID = 1987038 1400x968
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weimar 5180, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1965/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EAF801 EABC80 EM84 EL84 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Weimar 5180 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Exportmodell für OIRT-Norm. Mechanisch und elektrisch wie Modell 5140.
Literature/Schematics (1) -- Original prospect or advert (Funkverlag Hein Service-DVD)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
