• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118090

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 185; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

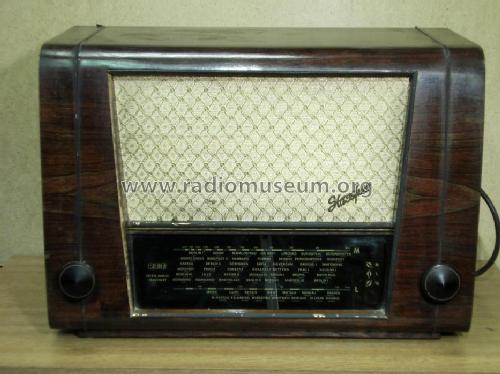

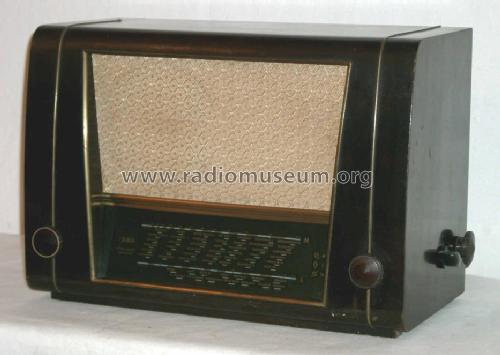

• Model: Stassfurt RFT-Super 4E67 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 322 x 232 mm / 17.7 x 12.7 x 9.1 inch

• Notes

• Klangregler, Hochglanz-Edelholzgehäuse. Bakelitchassis

  Der Empfänger 4E67 von Stern Radio Staßfurt (VEB) kann an der Gerätefront (Schallwand) die Bezeichnung Stassfurt tragen.
  Um die Auffindbarkeit zu verbessern, führen wir die Bezeichnungen Stassfurt im Modellnamen.

• Net weight (2.2 lb = 1 kg)
• 8.3 kg / 18 lb 4.5 oz (18.282 lb)

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
