Iris 12A 16 GW 302

Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 63911) Television

Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 63913) Television

Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 63910) Television

Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 63909) Television
Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 444854) Television Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 63908) Television
Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 168528) Television Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 174233) Television
Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 1289983) Television
Use red slider bar for more.

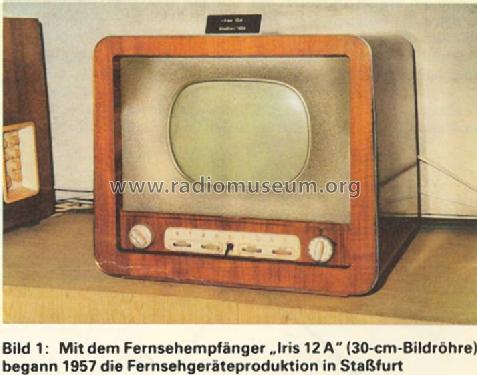

Iris 12A 16 GW 302; Stern-Radio Staßfurt (ID = 444854) Television
Stern-Radio Staßfurt: Iris 12A 16 GW 302 [Television] ID = 444854 795x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Iris 12A 16 GW 302, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1957 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: EC92 PCF82 PCF82 EF80 EF80 EF80 EF80 PL83 ECC82 PL81 PY81 DY86 PABC80 PL84 PCL82 B30M2
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Iris 12A 16 GW 302 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 450 x 455 mm / 20.1 x 17.7 x 17.9 inch
Notes Bei der 17 Zoll-Ausführung EY86 und B43M1 statt DY86 und B30M2. VHF-Bereiche.
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Andreas Hahn. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
Here you find 396 models, 314 with images and 309 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio Staßfurt: Iris 12A 16 GW 302
Threads: 1 | Posts: 1
Hits: 1632     Replies: 0
stern-stas: 12A; Iris
Franz Maderbacher
08.Oct.08
  1

Ich habe kürzlich via Ebay ein TV-Gerät IRIS12a erstanden, leider ziemlich desolat, Bildröhre B30M zerbrochen. Woher könnte man eine solch exotische BR bekommen?
