• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 77571
    • alternative name: Fernsehgerätewerk Staßfurt

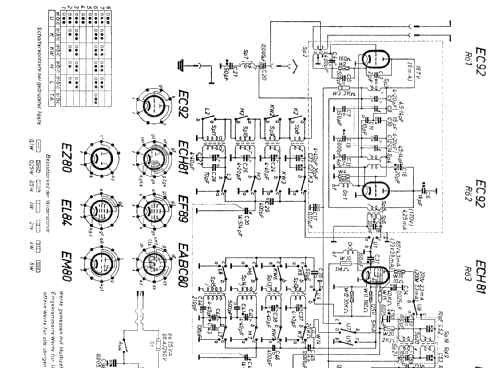

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 468/6700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 127, 220, 240 Volt
  • Loudspeaker
  • 4 Loudspeakers / Ø 20 cm = 7.9 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

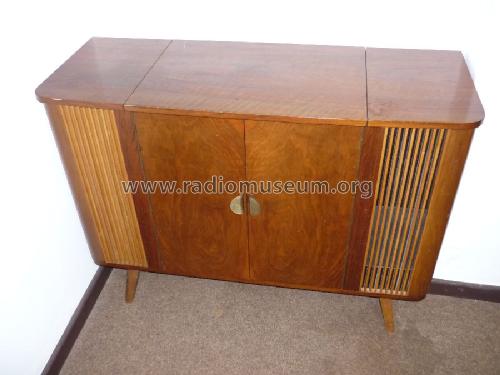

  • Model: Lohengrin II 8E155 III - Stern-Radio Staßfurt, VEB, RFT
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 1145 x 840 x 435 mm / 45.1 x 33.1 x 17.1 inch
  • Notes
  • Musikschrank mit Radioteil Diamant 2, Tonband BG20-4 Smaragd, 5-Tasten-Klangregister; 3D-Ton , getrennte Höhen- und Tiefenregelung.
  • Net weight (2.2 lb = 1 kg)
  • 68 kg / 149 lb 12.5 oz (149.78 lb)
  • Price in first year of sale
  • 2,118.00 DM
  • Source of data
  • -- Schematic / Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Original-techn. papers. (Radio und Fernsehen 6/1956)
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
