• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148643

• • alternative name: Fernsehgerätewerk Staßfurt

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF89 EABC80 EL84 EM80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 185; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

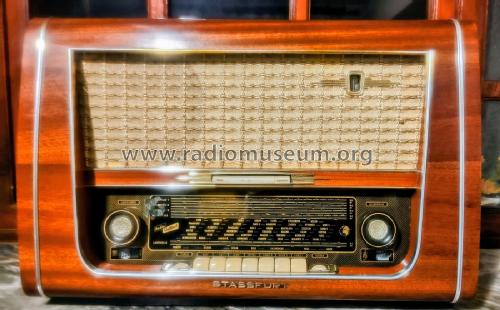

• Model: Staßfurt 6E67-I - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 414 x 300 mm / 24.8 x 16.3 x 11.8 inch

• Notes
• Ein AM-Empfänger mit 3 Kurzwellen und hoher Empfindlichkeit. Das Gerät war für den Export bestimmt. Siehe auch Modell 6E67.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 470.00 Mark

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)

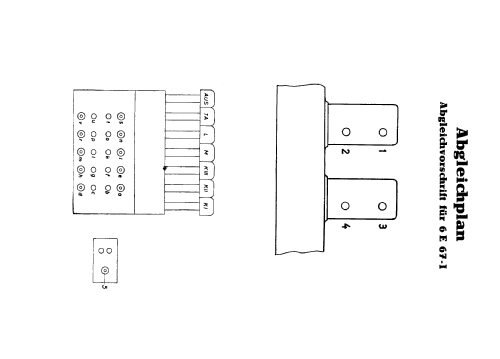

• -- Schematic

• Author
• Model page created by Jürgen Recke. See "Data change" for further contributors.
