Revox B36

Revox B36; Studer-Revox; (ID = 325299) R-Player

Revox B36; Studer-Revox; (ID = 675799) R-Player

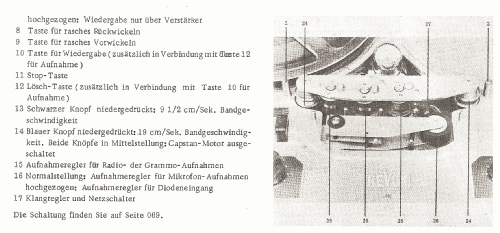

Revox B36; Studer-Revox; (ID = 675800) R-Player
Revox B36; Studer-Revox; (ID = 14493) R-Player Revox B36; Studer-Revox; (ID = 325867) R-Player

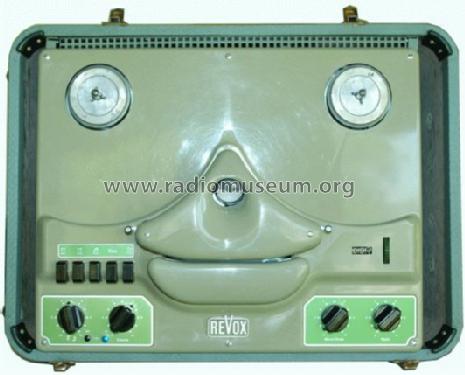

Revox B36; Studer-Revox; (ID = 325952) R-Player Revox B36; Studer-Revox; (ID = 325953) R-Player
Revox B36; Studer-Revox; (ID = 541704) R-Player Revox B36; Studer-Revox; (ID = 1924693) R-Player
Use red slider bar for more.
Revox B36; Studer-Revox; (ID = 14493) R-Player
Studer-Revox;: Revox B36 [R-Player] ID = 14493 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revox B36, Studer-Revox; Schweiz

Country:  Switzerland
Manufacturer / Brand:  Studer-Revox; Schweiz
Year: 1956–1958 Category: Sound/Video Recorder and/or Player
Valves / Tubes 8: ECC82 ECC81 ECC83 ECC83 ECC83 ECC83 EL84 EM71
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Revox B36 - Studer-Revox; Schweiz
Material Various materials
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 260 x 340 mm / 18.1 x 10.2 x 13.4 inch
Notes Tonbandkoffergerät, 3 Motore, 3 Köpfe, Hinterbandkontrolle, 9,5 und 19 cm/s, Voll- oder 2-Spur-Ausführung
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 990.00 SFr
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Frank Holtkamp. See "Data change" for further contributors.
