• Country
• Austria

• Manufacturer / Brand
• Stuzzi Ges. mbH; Wien

• Year
• 1949–1952

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 128274

• • alternative name: RKF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• RF-Circuit or wave trap (separate, can also be an antenna with amp.)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Powered by external power supply or a main unit. / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: RKF-Universal-Abstimmaggregat DKM22 - Stuzzi Ges. mbH; Wien

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 85 x 115 x 72 mm / 3.3 x 4.5 x 2.8 inch

• Notes

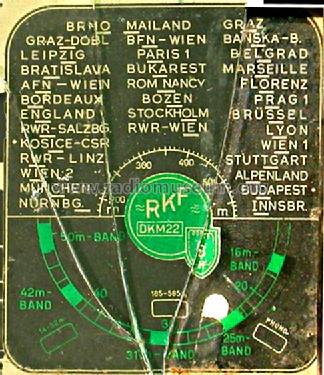

• Einbaufertiges Skalenaggregat mit 2-fach Drehko, Spulen und Bereichsschalter, fertig abgeglichen.

   Zwei ZF-Bandfilter der Type 417 wurden zu 58,50 ATS dazu verkauft.

• Price in first year of sale
• 142.00 ATS

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
