Dominante 7

Dominante 7; Svenska AB Trådlös (ID = 2544724) Radio Dominante 7; Svenska AB Trådlös (ID = 2544725) Radio

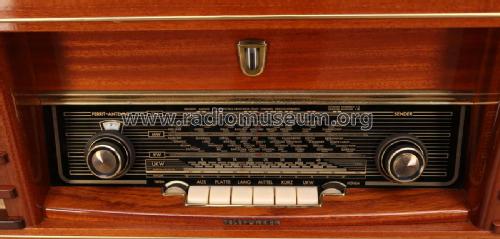

Dominante 7; Svenska AB Trådlös (ID = 2544726) Radio Dominante 7; Svenska AB Trådlös (ID = 2544727) Radio

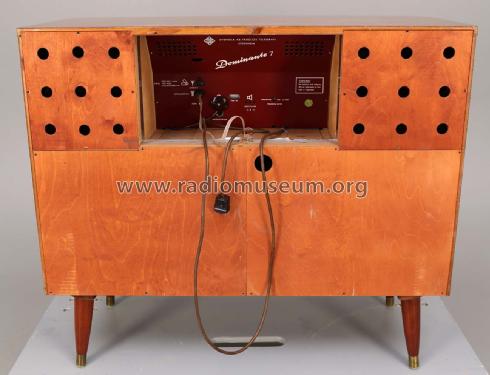

Dominante 7; Svenska AB Trådlös (ID = 2544728) Radio
Use red slider bar for more.
Dominante 7; Svenska AB Trådlös (ID = 2544724) Radio
Svenska AB Trådlös: Dominante 7 [Radio] ID = 2544724 900x773
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dominante 7, Svenska AB Trådlös Telegrafi (Telefunken); Stockholm:
auctionet.com #282979 Leiflers Auktionshaus

Country:  Sweden
Manufacturer / Brand:  Svenska AB Trådlös Telegrafi (Telefunken); Stockholm
Year: 1956/1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) B250C75
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Dominante 7 - Svenska AB Trådlös Telegrafi
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 960 x 840 x 420 mm / 37.8 x 33.1 x 16.5 inch
Notes

Radio chassis like Telefunken Operette 7
Record changer TW560.
Dial scale in German.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
