Supertefadyn W

Supertefadyn W; Tefag; Telephon (ID = 46838) Radio

Supertefadyn W; Tefag; Telephon (ID = 46839) Radio

Supertefadyn W; Tefag; Telephon (ID = 46840) Radio

Supertefadyn W; Tefag; Telephon (ID = 46841) Radio

Supertefadyn W; Tefag; Telephon (ID = 46842) Radio

Supertefadyn W; Tefag; Telephon (ID = 46844) Radio

Supertefadyn W; Tefag; Telephon (ID = 46845) Radio

Supertefadyn W; Tefag; Telephon (ID = 46846) Radio

Supertefadyn W; Tefag; Telephon (ID = 46847) Radio

Supertefadyn W; Tefag; Telephon (ID = 46848) Radio
Supertefadyn W; Tefag; Telephon (ID = 1145159) Radio Supertefadyn W; Tefag; Telephon (ID = 1145160) Radio
Supertefadyn W; Tefag; Telephon (ID = 1145161) Radio Supertefadyn W; Tefag; Telephon (ID = 1145162) Radio
Supertefadyn W; Tefag; Telephon (ID = 1145163) Radio
Use red slider bar for more.
Supertefadyn W; Tefag; Telephon (ID = 1145159) Radio

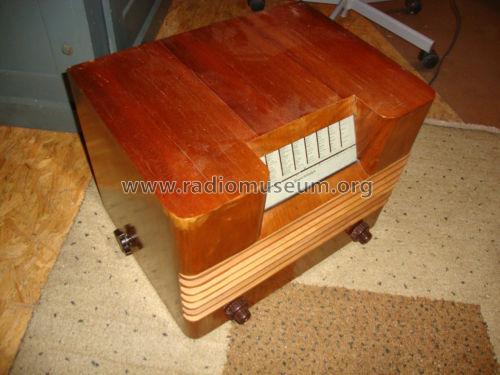

Tefag; Telephon: Supertefadyn W [Radio] ID = 1145159 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Supertefadyn W, Tefag; Telephon Aktiengesellschaft vorm. J. Berliner:
280807205398 marks-fundgrube

Country:  Germany
Manufacturer / Brand:  Tefag; Telephon Aktiengesellschaft vorm. J. Berliner
alternative name

Telephon-Fabrik, AG vorm. J. Berliner
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: AH1 AC2 AH1 AB2 AF7 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 475 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Supertefadyn W - Tefag; Telephon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 370 x 360 mm / 20.1 x 14.6 x 14.2 inch
Notes Eingangsbandfilter.
Price in first year of sale 318.00 RM
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
