Weltakkord W588

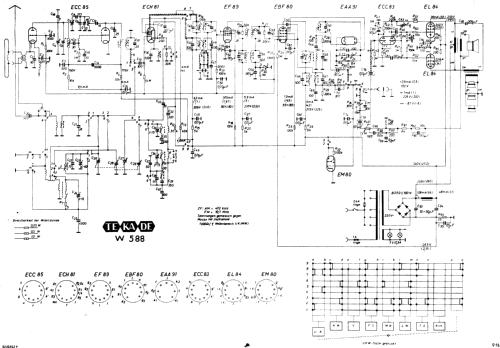

Weltakkord W588; TeKaDe TKD, (ID = 59249) Radio
Weltakkord W588; TeKaDe TKD, (ID = 10646) Radio Weltakkord W588; TeKaDe TKD, (ID = 97882) Radio
Weltakkord W588; TeKaDe TKD, (ID = 97885) Radio Weltakkord W588; TeKaDe TKD, (ID = 97890) Radio
Weltakkord W588; TeKaDe TKD, (ID = 67468) Radio Weltakkord W588; TeKaDe TKD, (ID = 97883) Radio
Weltakkord W588; TeKaDe TKD, (ID = 97884) Radio Weltakkord W588; TeKaDe TKD, (ID = 97887) Radio
Weltakkord W588; TeKaDe TKD, (ID = 97889) Radio Weltakkord W588; TeKaDe TKD, (ID = 97891) Radio
Use red slider bar for more.
Weltakkord W588; TeKaDe TKD, (ID = 10646) Radio
TeKaDe TKD,: Weltakkord W588 [Radio] ID = 10646 933x519
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltakkord W588, TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg

Country:  Germany
Manufacturer / Brand:  TeKaDe (TKD), Süddeutsche Telefon-Apparate- Kabel- und Drahtwerke; Nürnberg
alternative name

Felten & Guilleaume || Südd.Telefon-App., Kabel- und Drahtwerke AG || Telade
Brand
KD
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EBF80 EM80 EAA91 ECC83 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; Volt
Loudspeaker 4 Loudspeakers
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Weltakkord W588 - TeKaDe TKD, Süddeutsche
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 740 x 440 x 340 mm / 29.1 x 17.3 x 13.4 inch
Notes MW-Ortssendertaste; drehbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Price in first year of sale 428.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in Funk-Technik (FT) (16/1955, S. 440 / Duplex-Antrieb)
