T-325

T-325; Telefongyar, Terta (ID = 178192) Radio

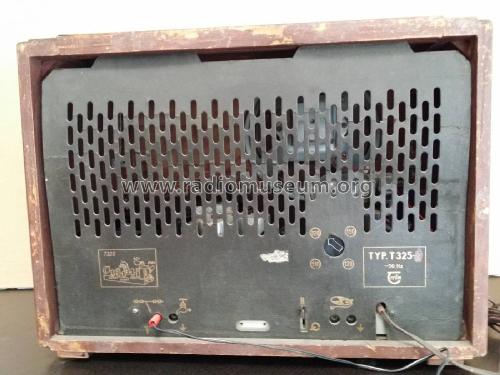

T-325; Telefongyar, Terta (ID = 2059660) Radio T-325; Telefongyar, Terta (ID = 2059662) Radio

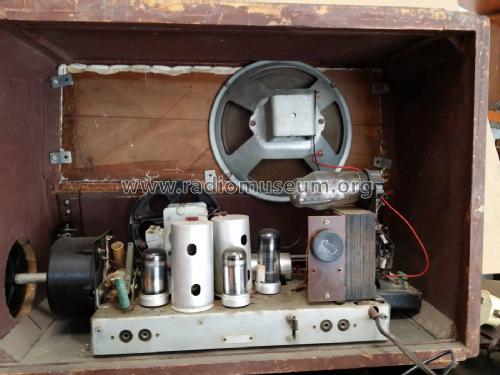

T-325; Telefongyar, Terta (ID = 2059661) Radio T-325; Telefongyar, Terta (ID = 382019) Radio

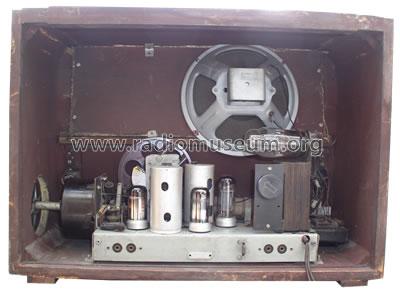

T-325; Telefongyar, Terta (ID = 571827) Radio T-325; Telefongyar, Terta (ID = 474982) Radio
T-325; Telefongyar, Terta (ID = 571826) Radio T-325; Telefongyar, Terta (ID = 877294) Radio
T-325; Telefongyar, Terta (ID = 877295) Radio T-325; Telefongyar, Terta (ID = 877296) Radio
Use red slider bar for more.
T-325; Telefongyar, Terta (ID = 2059660) Radio
Telefongyar, Terta: T-325 [Radio] ID = 2059660 1400x1220
Select picture or schematic to display from thumbnails on the right and click for download.
For model T-325, Telefongyar, Terta (TRT); Budapest

Country:  Hungary
Manufacturer / Brand:  Telefongyar, Terta (TRT); Budapest
Brand

Terta, TRT
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM4
Main principle Superheterodyne (common); ZF/IF 473,6 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: T-325 - Telefongyar, Terta TRT;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 385 x 262 mm / 19.9 x 15.2 x 10.3 inch
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Source of data Radio es Televizio Vevö keszülekek, 1956-57
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 105, jan-feb 2012)

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.



All listed radios etc. from Telefongyar, Terta (TRT); Budapest
Here you find 207 models, 196 with images and 50 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
