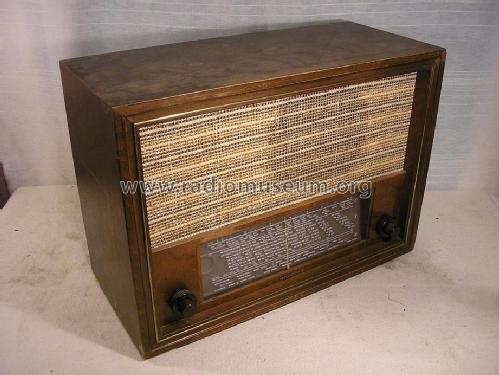

165WK (T165WK)

165WK ; Telefunken (ID = 7324) Radio

165WK ; Telefunken (ID = 21221) Radio
165WK ; Telefunken (ID = 36662) Radio 165WK ; Telefunken (ID = 201820) Radio
165WK ; Telefunken (ID = 201823) Radio 165WK ; Telefunken (ID = 36663) Radio
165WK ; Telefunken (ID = 36665) Radio 165WK ; Telefunken (ID = 36664) Radio
165WK ; Telefunken (ID = 201821) Radio 165WK ; Telefunken (ID = 201822) Radio
165WK ; Telefunken (ID = 571801) Radio 165WK ; Telefunken (ID = 571802) Radio
Use red slider bar for more.

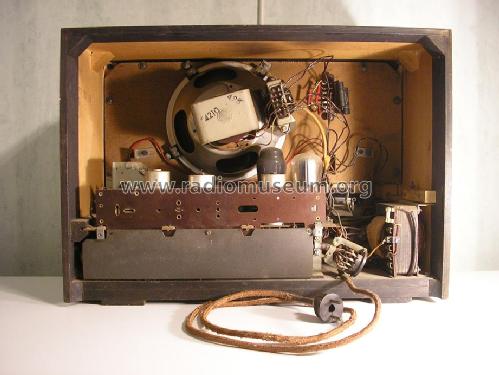

165WK ; Telefunken (ID = 36662) Radio
Telefunken: 165WK [Radio] ID = 36662 910x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 165WK (T165WK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Quelle: Atis Brikmanis

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1941–1944 Category: Broadcast Receiver - or past WW2 Tuner

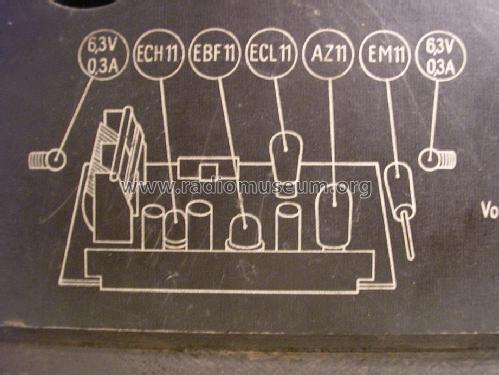

Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 165WK - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 515 x 370 x 240 mm / 20.3 x 14.6 x 9.4 inch
Notes Export;Vorläufer 065WK
Net weight (2.2 lb = 1 kg) 10.9 kg / 24 lb 0.1 oz (24.009 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

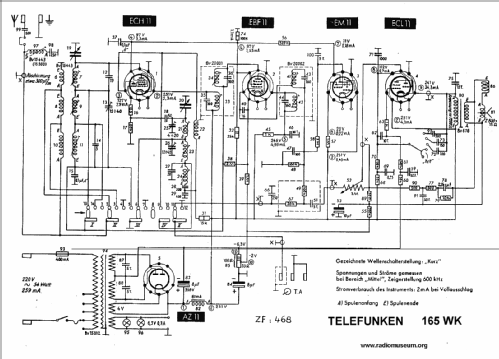

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Eine Abbildung findet sich im Doppelband "Radio von gestern"


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3421 models, 2986 with images and 1972 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
