For model 337UP, Telefunken; Wien:
Telefunken 337UP -2

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF7 CB2 CL4 CY1 U920 or U2020 or EUXX or EUVIII
Main principle Super-Heterodyne (Super in general); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 337UP - Telefunken; Wien
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 450 x 370 x 270 mm / 17.7 x 14.6 x 10.6 inch
Notes

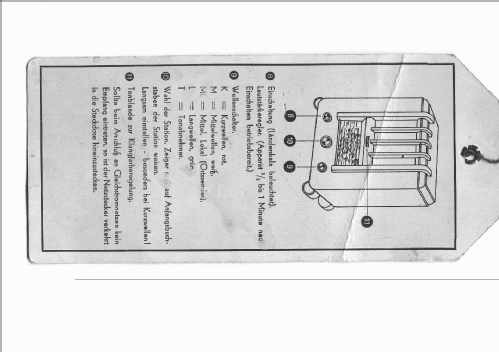

2 Mittelwellenbereiche :  Wellenschalterstellungen : T - L - ML - M - K

Mittelwellenbereich "ML" bedeutet laut Bedienungsanleitung "Mittelwelle Lokal" (Ortssender)

Price in first year of sale 410.00 öS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
