337WP (T337WP)

337WP ; Telefunken; Wien (ID = 7587) Radio
337WP ; Telefunken; Wien (ID = 2397751) Radio 337WP ; Telefunken; Wien (ID = 1582015) Radio
337WP ; Telefunken; Wien (ID = 14503) Radio 337WP ; Telefunken; Wien (ID = 1514010) Radio
337WP ; Telefunken; Wien (ID = 1582017) Radio 337WP ; Telefunken; Wien (ID = 14502) Radio
337WP ; Telefunken; Wien (ID = 14504) Radio 337WP ; Telefunken; Wien (ID = 1514019) Radio
337WP ; Telefunken; Wien (ID = 1514012) Radio 337WP ; Telefunken; Wien (ID = 66184) Radio
Use red slider bar for more.
337WP ; Telefunken; Wien (ID = 2397751) Radio

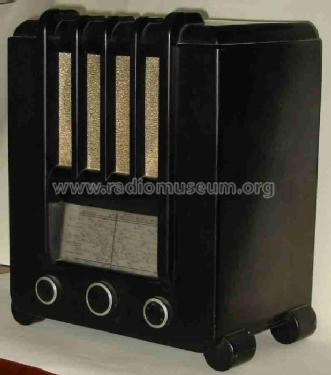

Telefunken; Wien: 337WP [Radio] ID = 2397751 1200x1342
Select picture or schematic to display from thumbnails on the right and click for download.

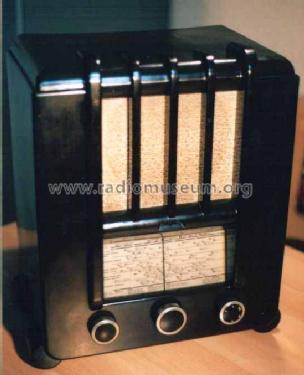

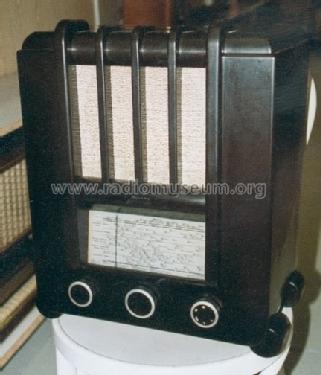

For model 337WP (T337WP), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 484 kHz; Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 337WP - Telefunken; Wien
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 450 x 260 mm / 15.7 x 17.7 x 10.2 inch
Notes

Der ZF-Verstärker mit Röhre AF7 arbeitet in Reflexschaltung als NF-Vorstufe.

Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange + Schenk
