• Year
  • 1930–1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 4496

Click on the schematic thumbnail to request the schematic as a free document.

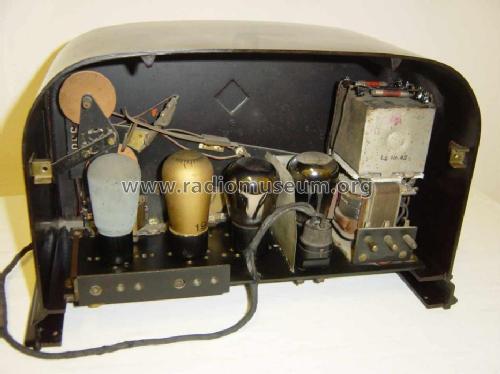

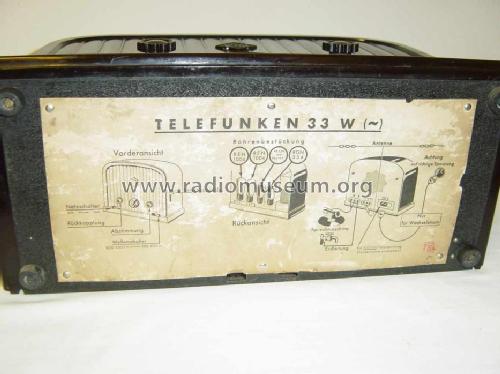

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF with regeneration; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 117; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 33W - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 380 x 250 x 170 mm / 15 x 9.8 x 6.7 inch
  • Notes
  • auch Sp. oder wz [501]
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Price in first year of sale
  • 165.00 RM !
  • Circuit diagram reference
  • Lange + FS-Bestückungstabellen
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
