343W (T343W)

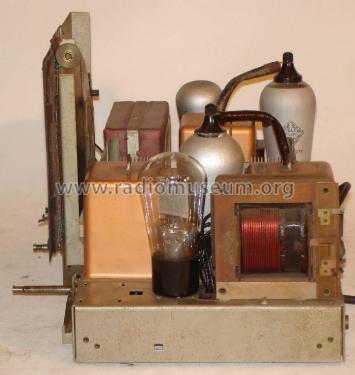

Telefunken: 343W [Radio] ID = 50248 717x556
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932/1933 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: RENS1214 RENS1214 REN904 RES164 RGN564 |
|---|
| Main principle | TRF without regeneration; 2 Special; 1 AF stage(s) |
|---|---|
| Tuned circuits | 3 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: 343W - Telefunken Deutschland TFK, |
| Material | Bakelite case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 410 x 290 x 250 mm / 16.1 x 11.4 x 9.8 inch |
| Notes | Siehe auch 343WL (T343WL, L343W) mit eingebautem Lautsprecher. Paralleltype zum Siemens 46W in anderem Gehäuse. |
| Net weight (2.2 lb = 1 kg) | 10.5 kg / 23 lb 2 oz (23.128 lb) |
| Price in first year of sale | 248.00 RM ! |
| Source of data | Katalog Radio-Zentrale Prohaska 1932/33 / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange + FS-Bestückungstabellen |
| Mentioned in | Radio Nostalgie |
| Picture reference | Das Modell ist im «Radiokatalog» (Erb) abgebildet. |
