T530WK (5A)

T530WK ; Telefunken; Wien (ID = 382659) Radio T530WK ; Telefunken; Wien (ID = 382661) Radio
T530WK ; Telefunken; Wien (ID = 382660) Radio T530WK ; Telefunken; Wien (ID = 382662) Radio
T530WK ; Telefunken; Wien (ID = 870036) Radio T530WK ; Telefunken; Wien (ID = 870037) Radio
T530WK ; Telefunken; Wien (ID = 870038) Radio
Use red slider bar for more.
T530WK ; Telefunken; Wien (ID = 382659) Radio
Telefunken; Wien: T530WK [Radio] ID = 382659 448x236
Select picture or schematic to display from thumbnails on the right and click for download.
For model T530WK (5A), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1936 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF7 AB2 AL4 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 185; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: T530WK - Telefunken; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 270 x 240 mm / 21.3 x 10.6 x 9.4 inch
Notes

See also model Telefunken 337W.

Model page created by Francisc VISKY. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Wien
Here you find 109 models, 95 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken; Wien: T530WK
Threads: 1 | Posts: 2
Hits: 2613     Replies: 1
telefunken: 337W; Weltklasse 1937=T530WK?
Francisc VISKY
25.Oct.07
  1

Hello to everybody! First of all I am the happy owner of the Radio Katalog-s by Erb Ernst. Beautiful work done… well done.

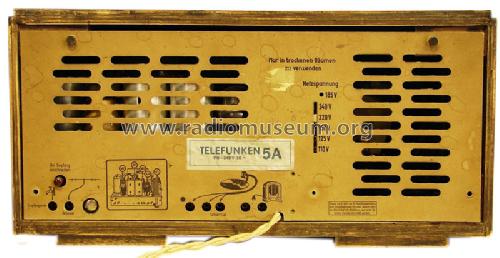

I checked it out with one of my radio set. Is a Telefunken . On dial it is written the type T530WK but on the back is 5A.

 In the catalog (pg. 285): it appears at Austrian branch but with other name (337w?) as an reflex super. It is true that on my set there is a label with 5A . What is under the label only Mr. Erb knows?!



Attachments

Wolfgang Bauer
20.Sep.16
  2

Beitrag wurde zum richtigen Modell verschoben und damit ist die Frage geklärt worden.

MfG. WB.
