• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167848

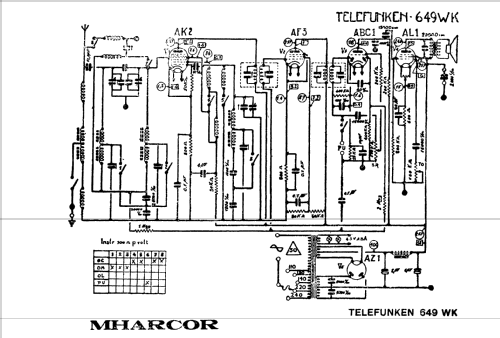

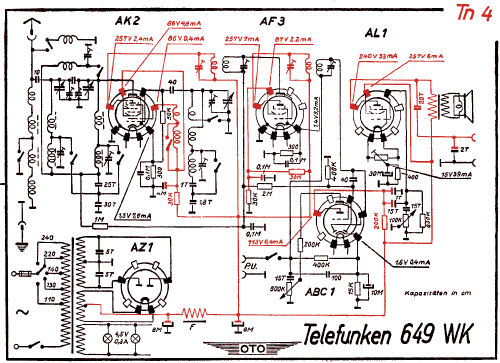

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL1 AZ1

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 140; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 649WK - Telefunken Deutschland TFK,

• Notes
• Exportmodell.

• Price in first year of sale
• 2,400.00 BEF

• Mentioned in
• Telefunken Katalog Serie 1938 (Belgien)

• Author
• Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
