Admiral 348WL (T348WL)

Admiral 348WL ; Telefunken (ID = 21743) Radio

Admiral 348WL ; Telefunken (ID = 21744) Radio

Admiral 348WL ; Telefunken (ID = 37547) Radio

Admiral 348WL ; Telefunken (ID = 37548) Radio

Admiral 348WL ; Telefunken (ID = 37549) Radio

Admiral 348WL ; Telefunken (ID = 7629) Radio

Admiral 348WL ; Telefunken (ID = 718169) Radio

Admiral 348WL ; Telefunken (ID = 718171) Radio
Admiral 348WL ; Telefunken (ID = 2450256) Radio Admiral 348WL ; Telefunken (ID = 2450257) Radio
Admiral 348WL ; Telefunken (ID = 2450258) Radio Admiral 348WL ; Telefunken (ID = 2450255) Radio
Admiral 348WL ; Telefunken (ID = 2450261) Radio Admiral 348WL ; Telefunken (ID = 2450262) Radio
Admiral 348WL ; Telefunken (ID = 2450263) Radio Admiral 348WL ; Telefunken (ID = 600269) Radio
Admiral 348WL ; Telefunken (ID = 105347) Radio Admiral 348WL ; Telefunken (ID = 105346) Radio
Use red slider bar for more.
Admiral 348WL ; Telefunken (ID = 2450256) Radio

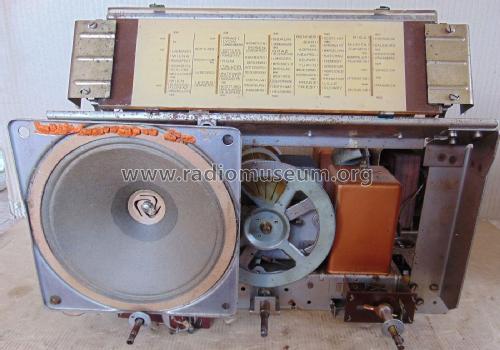

Telefunken: Admiral 348WL [Radio] ID = 2450256 1400x1155
Select picture or schematic to display from thumbnails on the right and click for download.
For model Admiral 348WL (T348WL), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1234 RENS1234 AB1 REN914 RENS1374d RGN1064
Main principle TRF with diode detector; 2 Special; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17.5 cm = 6.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Admiral 348WL - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 340 x 340 mm / 18.3 x 13.4 x 13.4 inch
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 284.00 RM
Source of data Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog, Mix & Genest Hansawerke, 1935
Literature/Schematics (1) Telefunken-Werkstattbuch


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
