Allegro 2183 poliert

Allegro 2183; Telefunken (ID = 190718) Radio

Allegro 2183; Telefunken (ID = 190719) Radio

Allegro 2183; Telefunken (ID = 190720) Radio

Allegro 2183; Telefunken (ID = 190721) Radio

Allegro 2183; Telefunken (ID = 190722) Radio

Allegro 2183; Telefunken (ID = 190723) Radio

Allegro 2183; Telefunken (ID = 1797777) Radio

Allegro 2183; Telefunken (ID = 1797778) Radio
Allegro 2183; Telefunken (ID = 410407) Radio Allegro 2183; Telefunken (ID = 410408) Radio
Allegro 2183; Telefunken (ID = 410409) Radio Allegro 2183; Telefunken (ID = 1075553) Radio

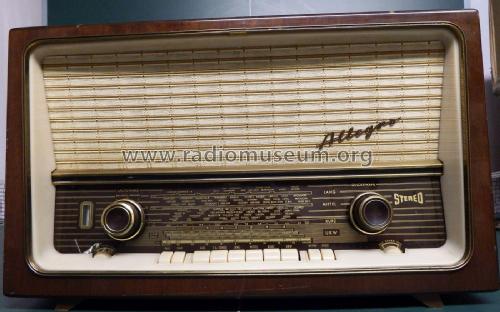

Allegro 2183; Telefunken (ID = 1987245) Radio Allegro 2183; Telefunken (ID = 1987250) Radio
Allegro 2183; Telefunken (ID = 1987251) Radio Allegro 2183; Telefunken (ID = 1987252) Radio
Allegro 2183; Telefunken (ID = 1987253) Radio Allegro 2183; Telefunken (ID = 1987254) Radio
Use red slider bar for more.
Allegro 2183; Telefunken (ID = 410407) Radio
Telefunken: Allegro 2183 [Radio] ID = 410407 900x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model Allegro 2183 poliert, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM84 EBC91 ECL86 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Allegro 2183 [poliert] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 360 x 245 mm / 23.2 x 14.2 x 9.6 inch
Notes 2 Dioden OA172, OA172,
Net weight (2.2 lb = 1 kg) 10.7 kg / 23 lb 9.1 oz (23.568 lb)
Price in first year of sale 359.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
