Andante 1952 W

Andante 1952; Telefunken (ID = 2420027) Radio

Andante 1952; Telefunken (ID = 2420028) Radio

Andante 1952; Telefunken (ID = 2420029) Radio

Andante 1952; Telefunken (ID = 2420034) Radio

Andante 1952; Telefunken (ID = 85774) Radio

Andante 1952; Telefunken (ID = 85775) Radio
Andante 1952; Telefunken (ID = 20145) Radio Andante 1952; Telefunken (ID = 20146) Radio
Andante 1952; Telefunken (ID = 20147) Radio Andante 1952; Telefunken (ID = 88170) Radio

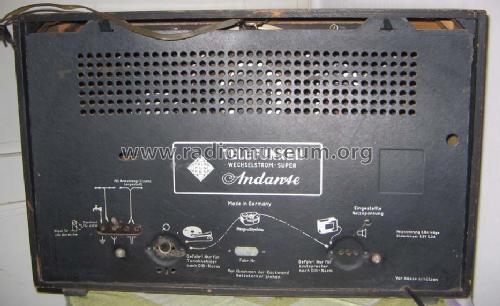

Andante 1952; Telefunken (ID = 88171) Radio Andante 1952; Telefunken (ID = 88172) Radio
Andante 1952; Telefunken (ID = 327094) Radio Andante 1952; Telefunken (ID = 425778) Radio
Andante 1952; Telefunken (ID = 425779) Radio Andante 1952; Telefunken (ID = 425780) Radio
Use red slider bar for more.
Andante 1952; Telefunken (ID = 20145) Radio
Telefunken: Andante 1952 [Radio] ID = 20145 783x543
Select picture or schematic to display from thumbnails on the right and click for download.
For model Andante 1952 W, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF85 EC92 ECH81 EF41 EM11 EABC80 EL41
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Andante 1952 [W] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 370 x 260 mm / 23.2 x 14.6 x 10.2 inch
Notes Hochtonlautsprecher:Kristallsystem. Stetig regelbare Bandbreite
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 378.00 DM
Collectors' prices
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3397 models, 2957 with images and 1944 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
